1957 - 1960 Ford Truck Lights and Light Assemblies

Note:  Click on a thumbnail picture to see a larger view!                 09/17/2014 01:01 PM


Part # YEAR TYPE DESCRIPTION Picture PRICE
C5025 All Wire Conduit Stainless Steel Conduit with chromed ends, 12" long (In Stock!) $5 ea.
C5026 All Wire Conduit Stainless Steel Conduit with chromed ends, 18" long (In Stock!) 18inch_Stainless_WireConduit.jpg (115838 bytes) $6 ea.
A8050 28-67 Wire Shield Wire Shield for Taillight Assembly, Stainless Steel (In Stock!) WireShieldStainless.jpg (13838 bytes) $15 pr.
A8036 28-67 Wire Shield Wire Shield for Taillight Assembly, Black Steel (In Stock!) Black_WireShield.jpg (10870 bytes) $10 pr.
A1012 28-67 Bracket License Plate Bracket, Black (In Stock!) $10 ea.
A1013 28-67 Bracket License Plate Bracket, Stainless (In Stock!) $15 ea.
A6217 32-67 Bracket Mounting Bracket FOR TAILLIGHT Assembly, Taillight Mounting holes are 5/16" dia. at 1 3/4" center to center, Bracket Mount holes are 5/16" dia at 2" center to center (Solid Stainless Steel) 3" wide at base x 6 1/8" long (In Stock!) Ford_Stainless_TLBracket.jpg (56980 bytes) $15 ea.
A5013 32-67 Bracket Mounting Bracket FOR TAILLIGHT Assembly, Taillight Mounting holes are 5/16" dia. at 1 3/4" center to center, Bracket Mount holes are 5/16" dia at 2" center to center (BLACK) 3" wide at base x 6 1/8" long (In Stock!) Ford_Black_TLBracket.jpg (56420 bytes) $8 ea.
KA0709KNS 38-67 Bracket Bent-Short Mounting Bracket FOR TAILLIGHT Assembly, LH, Taillight Mounting holes are 5/16" dia. at 1 3/4" center to center, Bracket Mount holes are 5/16" dia at 2" center to center (Solid Polished Stainless Steel) (In Stock) $20 ea.
KA0710KNS 38-67 Bracket Bent-Short Mounting Bracket FOR TAILLIGHT Assembly, RH, Taillight Mounting holes are 5/16" dia. at 1 3/4" center to center, Bracket Mount holes are 5/16" dia at 2" center to center (Solid Polished Stainless Steel) (In Stock) $20 ea.
A6108 40 Script 1940 Ford Script - for use on taillight lens or other, with clips (In Stock!) 40_Ford_Script.jpg (6144 bytes) $15 pr.

Note:
Any of the shield assemblies can have any of the lenses. Add the price of the lens you want and subtract the price of the plain lenses. E-mail or call for price quotes.

A5018L 53-56 Taillight Assembly, Shield type, Stainless body, Left Hand with License Lens, (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) 53-56_FordPU_LHStainlessTLAssy.jpg (54773 bytes) $35 ea.
A5018R 53-56 Taillight Assembly, Shield type, Stainless body, Righ Hand  (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) 53-56_FordPU_RHStainlessTLAssy.jpg (72581 bytes) $35 ea.
A5011L 53-56 Taillight Assembly, Shield type, Black body, Left Hand with License Lens (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) 53-56_LHBlackShield_TLAssy.jpg (45774 bytes) $25 ea.
A5011R 53-56 Taillight Assembly, Shield type, Black body, Righ Hand  (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) 53-56_RHBlackShield_TLAssy.jpg (47354 bytes) $25 ea.
FTL5011LED-L 53-56 Taillight LED Assembly, Shield type, Black body, Left Hand with White LED License Lens & Red LED Taillight Lens, (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) $90 ea.
FTL5011LED-R 53-56 Taillight LED Assembly, Shield type, Black body, Right Hand with Red LED Taillight Lens, (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) $60 ea.
FTL5018LED-L 53-56 Taillight LED Assembly, Shield type, Stainless body, Left Hand with White LED License Lens & Red LED Taillight Lens, (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) $95 ea.
FTL5018LED-R 53-56 Taillight LED Assembly, Shield type, Stainless body, Right Hand with Red LED Taillight Lens, (Approx. 5 1/2" wide x 6 1/2" long x 3" 1/4 deep) (In Stock) $65 ea.
FTP-53 53/54 Park light Lens, PICKUP (Have 1) FTP53_Pickup_PLLens.jpg (44963 bytes) $15
301/513 53-67 Taillight Lens, TRUCKS SHIELD TYPE (In Stock) 53-56_G301Shield_TLLens.jpg (25702 bytes) $9 ea.
301S 53-67 Taillight Lens, SHIELD With Chrome FORD SCRIPT, Script is Metal, Very nice - Looks good (In Stock) 53-56_FordScriptShield_TLLens.jpg (34398 bytes) $30 pr.
F535601 53-67 Taillight Lens, SHIELD With block FORD letters, Very nice - Looks good (In Stock) $20 pr.
301BD 53-67 Taillight Lens, TRUCKS SHIELD TYPE With Glass BLUE DOT (In Stock) 53-56_G301BD_FordTruck_BlueDot_TLLens.JPG (43108 bytes) $30 pr.
301SBD 53-67 Taillight Lens, SHIELD With Chrome FORD SCRIPT and Glass BLUE DOT (In Stock) 53-56_FordScriptBDShield_TLLens.jpg (37673 bytes) $40 pr.
F535601BD 53-67 Taillight Lens, SHIELD With block FORD letters and Glass BLUE DOT , Very nice - Looks good (In Stock) $30 pr.
A5017 53-67 Taillight Lens Gasket, fits all Ford Trucks with Shield type taillights, Cork, New (In Stock) $5 pr.
618/822 53-67 License LICENSE LENS FOR SHIELD TYPE Taillight (In Stock!) 53-56_T822_Shield_LicLens.jpg (5621 bytes) $5 ea.
FLT-55 55-60? License Assembly, Panel truck?, License Light, has FL-48 light assembly inside, very nice condition 55-59_FLT55_FordPanel_LicLiteAssy.jpg (187223 bytes) $30
TPT-57 57-58 Park light Assembly, ALL 57 & 58 Ford Trucks, 4 3/4" diameter, Used - Fair Condition with some rust (Have 0) $40Sold
TR-57 57-60 Taillight Lens, original Ford Style Side, used - good condition, 4 3/8" diameter, Used - Fair condition (have 3) 57_TR57_FordStyleSide_TLLens.jpg (49761 bytes) $10 ea.
TRST-57B 57-60 Taillight Lens, original Ford Style Side, used - good with one small crack, 4 3/8" diameter,  (have 2) $10 ea.
TRST-57B 57-60 Taillight Assembly, original Ford Style Side, used - good condition, 4 3/8" diameter,  (have 1) $50
324/724 57-60 Taillight Lens, Style Side PICKUP, new repro,  4 3/8" diameter (In Stock!)  57-60_Styleside_TLLens.jpg (23444 bytes) $15 ea.
324/724BD 57-60 Taillight Lens, new repro, Style Side PICKUP With Glass BLUE DOT,  4 3/8" diameter (In Stock!) 57-60_StylesideWBD_TLLens.jpg (23764 bytes) $40 pr.
324/724FD 57-60 Taillight Lens, new repro, Style Side PICKUP With Chrome Ford Script, 4 3/8" diameter (In Stock!) 57-60_StylesideW-Ford_TLLens.jpg (30614 bytes) $45 pr.
TRSL-57 57-60 Taillight Lens, NOS, Ford panel truck (have several) (Have several In Stock!) TRSL57_PanelNOS_TLLens.jpg (15417 bytes) $20 ea.
TRST-57A 57-60 Taillight Assembly, Ford panel truck, Used - LH one has a hole in the chrome and a repaired hole in the lens - RH one has good lens and good bezel with some chrome wear (Have 0 pair)
$200Sold
615/817 57-67 Park light Lens, ALL 57 up With ROUND CLEAR LENS, NORS, 4 3/8" diameter, New (Have several In Stock!) 57-58_G615_FordPU_PLLens.jpg (281381 bytes) $10 ea.
615/817FD 57-67 Park light Lens, ALL 57 up With ROUND CLEAR LENS,  With Chrome Ford Script, NORS, 4 3/8" diameter, New (Have several In Stock!)   $35 pr.
400 57-67 Park light Lens, ALL 57 up With ROUND Amber LENS, NORS, Autolamp #400, 4 3/8" diameter (have several) Autolamp400_Amber.JPG (33177 bytes) $10 ea.
TPT-57 57-67 Park light Lens, ALL 57 up With ROUND Amber LENS, NOS,  4 3/8" diameter (Have 1) 57-68_TPT57_FordTruck_Amber_NOS_PLLens.JPG (48406 bytes) $15

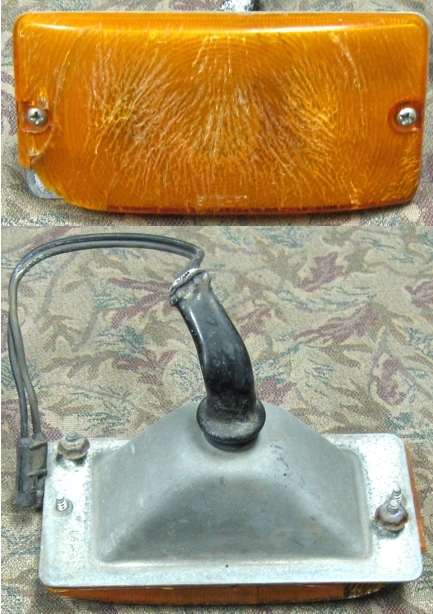

TPT-59 59-69 Park light Assembly, PICKUP & Van, Amber Lens, used - excellent base & distressed lens (Have 1) $35
TPT-59/156 59-62 Park light Lens, PICKUP, CLEAR, 5-1/2" long x 2-3/4" high, used - looks pretty good with some weathering, scatches and chips (Have 2) 59-62_TPT-59_FordPU_PLLens.JPG (29759 bytes) $20 ea.
TPT-59 59-69 Park light Housing with Bulb Socket, PICKUP & Van, LH, used - excellent  (Have 1)   $20
TRST-59 59-67 Taillight Lens, NOS, Stepside Pickups & Big Trucks, 4" ROUND WITH FLANGE, new  (In Stock!) TRST59_59-67Truck_NOS_TLLens.jpg (27818 bytes) $12 ea.
TRST-59 59-67 Taillight Lens,  NOS, W/BLUE DOT, Stepside Pickups & Big Trucks, 4" ROUND, new (In Stock!) TRST59_59-67Truck_NOS-WBD_TLLens.jpg (20810 bytes) $35 pr.
806/737 59-67 Taillight Lens, Stepside Pickups & Big Trucks, 4" ROUND WITH FLANGE, new  (In Stock!) 59-67_T737_Stepside_TLLens.jpg (18301 bytes) $10 ea.
806/737 59-67 Taillight Lens,  With glass BLUE DOT, Stepside Pickups & Big Trucks, 4" ROUND, New (In Stock!) TRST59_59-67Truck_NOS-WBD_TLLens.jpg (20810 bytes) $30 pr.
806/737 59-67 Taillight Lens,  With Chrome Ford Script, Stepside Pickups & Big Trucks, 4" ROUND, New (In Stock!) $30 pr.
A1033-2 42-59 Taillight Lens Gasket, fits all Ford Stepside Trucks with round taillights, Cork, New (In Stock) $5 pr.
Dualamp-B 59-67 Taillight Assembly, step Side PICKUP & Big Trucks, 4 3/8" diameter, Used - Original with pigtail (Have 1)  $25

Ford Truck Taillight Assembly, Special LED Bulb, Stainless Housing

FTL5767L-SS 57-67 Taillight Stainless Assembly, LH, with Plastic license lens, Plastic taillight lens, stainless bezel & Housing, fits all Ford Stepside and big trucks, Dual element 19 Super Bright Red LED taillight circuit bulb & 5 white LED Lic lite bulb, Nice! (3 3/4" dia. x 2 1/4" deep, 2 1/2" dia. back, 2 - 1/4" bolts 1 3/4" center to center) (In Stock) $65 ea.
FTL5767R-SS 57-67 Taillight Stainless Assembly, RH, Plastic taillight lens, stainless bezel & Housing, fits all Ford Stepside & Big Trucks, Dual element 19 Super Bright Red LED taillight circuit bulb, Nice!  (3 3/4" dia. x 2 1/4" deep, 2 1/2" dia. back, 2 - 1/4" bolts 1 3/4" center to center) (In Stock) $55 ea.

1957-67 Ford Stepside Pickups & TrucksTaillight Assembly, 1157 Regular Bulb, Plastic Lens, Black Housing

F576701-L 57-67 Taillight Black steel Assembly, LH w/lic glass lens, Plastic lens, fits all Ford Stepside Pickups & Trucks, Dual element bulb, Nice! (3 3/4" dia. x 2 1/4" deep, 2 1/2" dia. back, 2 - 1/4" bolts 1 3/4" center to center) (In Stock) $35 ea.
F576701-R 57-67 Taillight Black steel Assembly, RH, Plastic Lens, fits all Ford Stepside Pickups & Trucks, Dual element bulb, Nice!  (3 3/4" dia. x 2 1/4" deep, 2 1/2" dia. back, 2 - 1/4" bolts 1 3/4" center to center) (In Stock) $35 ea.

Cab Lights - New & Used (See Truck Clearance Lights Page)

Mirrors - See my Mirrors Page!!
